Outdoor Motorized Windproof Zipscreen

The windproof zipscreen is the same as Roma zipscreen. It's a best shading solution for the oversized terrace.
  • DS701


  • 0.5m-6m

  • 0.8m-5m

  • White & Light Grey

  • Inside or Outside

  • Fiberglass sunscreen

  • Roma Zipscreen

  • Electric via remote control


Fetures of Motorized Zipscreen

* Zipscreen system comes with high wind resist performance, wind proof can get 130 km/h.

* Exclusive outdoor waterproof sunscreen fabric, color fastness can get 8 grade.

* Zipscreen comes with UV block, rainproof, windproof & anti-insect functions.

* Zipscreen blinds gives your house to add more privacy space.

* Widely used (hotel, eco house, sun room, balcony, villa and bussiness)

* Motorized via remote control gives you an easy operation and the best enjoy.

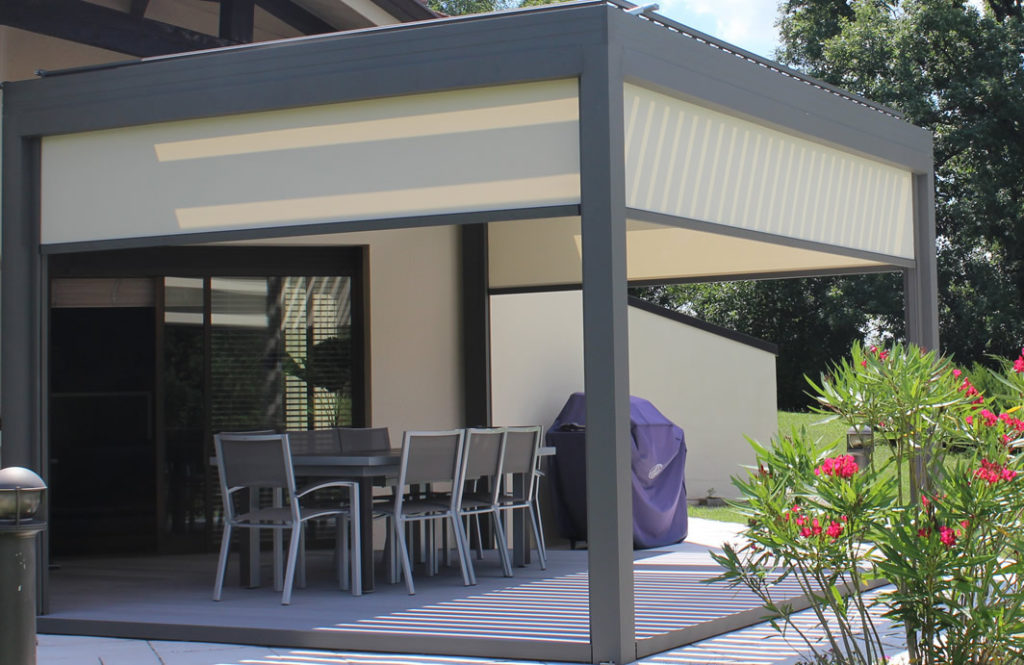

zipscreen 6

Specifications of Motorized Zipscreen

Just the same design as roma zipscreen, we choose high quality material & accessories to design our zipscreen blinds. That's why our zipscreen can resist 12 grade wind on land.

Frame material

Aluminum alloy

Alu. Cassette

95 x 95 x 2.0mm/115 x 115 x2.0mm

Alu. Roller tube

60 x 1.2mm/85 x 1.2mm

Alu. Side track

48.5 x 39 x 1.5mm

Alu. Bottom

30 x 50 x 1.5mm

Fabric material

Fiberglass sunscreen (blackout, 5% openness, 12% openness)

Control methods

Remote control/ wireless switch

Zipscreen material size

Custom Zipscreen Blinds Size

Zipscreen blinds can be customized in any size which not exceed our design scope

(design scope: width 0.6-5m x height 0.6-5m)

Zipscreen size

Optional for Zipscreen Blinds

1. Zipscreen frame color option

Regular color is white & light grey (Other colors can be customized)

zipscreen white framezipscreen grey frame

2. Zipscreen control option

We use Dooya brand tubular motor on our zipscreen, stable operation of motor. The control device you can choose wireless remote control or wireless switch control.

zipscreen control device

3. Zipscreen fabric option

Sunshade fabric is on of the most important parts on the whole of motorized zipscreen. For matching the users demands, we have developed many sunshade fabrics with different functions. You can custom your own zipscreen blinds in different fabrics from DS Shading.

Below are our regular fabric types & colors. (Any other fabrics if need, pls contact us to confirm)

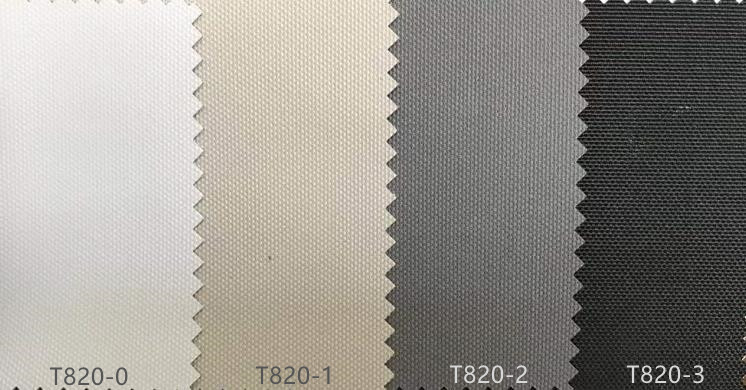

Blackout fabric for zipscreen

Fabric Composition 50% polyester + 50% functional coating
Openness Factory blackout
UV Screen UPF≥50
Weight/m2 420g/m2 ±5%
Thickness 0.65mm ±0.02
Colour Fastness more than 6 grade

Zipscreen balckout fabric

5% openness fabric for zipscreen

Fabric Composition 30% polyester + 70% PVC
Openness Factory 5%
UV Screen up to 95%
Weight/m2 525g/m2 ±5%
Thickness 0.7mm ±5%
Colour Fastness 8 grade

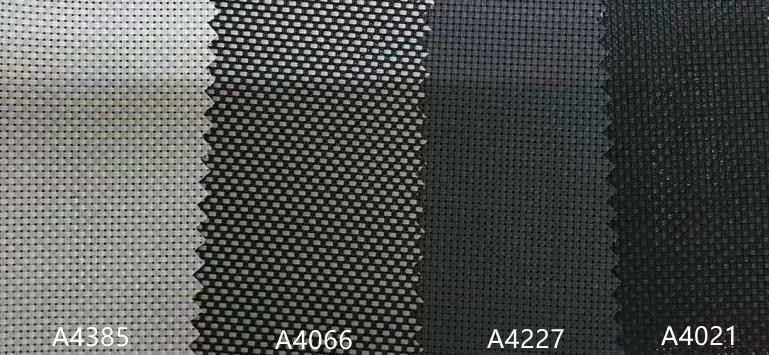

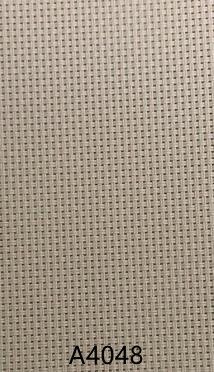

zipscreen fabric -3zipscreen fabric -1Zpscreen fabric -2

5% openness fabric for zipscreen

Fabric Composition 30% polyester + 70% PVC
Openness Factory 5%
UV Screen up to 95%
Weight/m2 420g/m2 ±5%
Thickness 0.6mm ±5%
Colour Fastness 8 grade

zipscreen fabric -4

12% openness fabric for zipscreen

Fabric Composition 47% polyester + 53% PVC
Openness Factory 12%
UV Screen 88%
Weight/m2 415g/m2 ±5%
Thickness 0.47mm ±5%
Colour Fastness 8 grade

zipscreen fabric -5

Why Roma Zipscreen Textile Screens are Famous In the World?

ROMA zipscreen textile screens are convincing not only thanks to their outstanding sun shading properties . Their functionality is unique: They provide protection against heat and glare while still allowing in enough daylight for a natural atmosphere, also ensuring good vision from the inside to the outside.

The textile screens of zipscrren roma are weather-proof and practically maintenance-free. When it comes to creating an atmosphere, they also offer a world of new possibilities: Depending on their colour, the translucent fabrics reflect the greatest part of the thermal radiation outside the window without sacrificing the outside view.

You can thus ideally regulate the room temperature and still enjoy the spectacular views. Roma zipscreen textile screens filter out 98% of the UV radiation and protect living rooms and spaces with their weather-proof and durable fabrics, while still allowing natural light to enter the room.

How to Install Zipscreen Blinds?

Zipscreen is easy for installation, no professional is required. The whole of motorized zipscreen are pre-assemble in our factory, and we also finished the control procedure between motor & remote control. You only need to install it on the wall.

You also can refere our installation manual for get some help.

Installation Manual---Zipscreen.pdf

Why DS Shading Can be A Professional Zipscreen Blinds Manufacturer?

DS Shading as a leading zipscreen manufacturer and supplier in China from 2006. We are more focuses on custom zipscreen blinds quality. From raw material process to products packages, a full set of process are have done in our own workshop and finished by ourselves.

Our company has a professional technology research and development and quality control team. They are very professional in zipscreen blinds production and processing and quality detection.They could make sure our zipscreen quality good and stable.

DS Shading committed to providing our customers with affordable motorized zipscreen with good quality.

Users' Shows of Zipscreen

Cause DS Shading always manufacture motorized zipscreen with excellent design & high quality. That's why our zipscreen are well received at home and abroad.

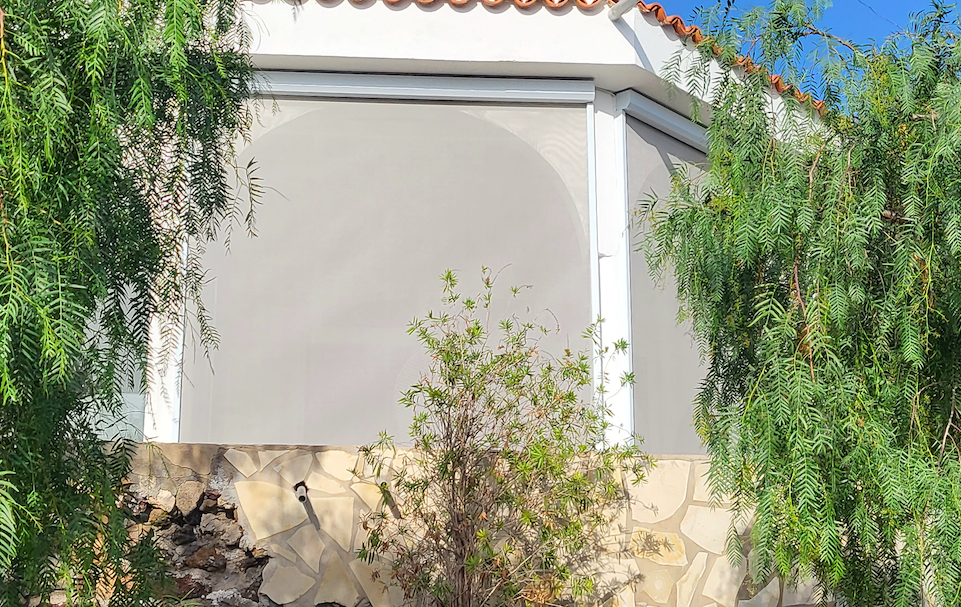

zipscreen insatllation

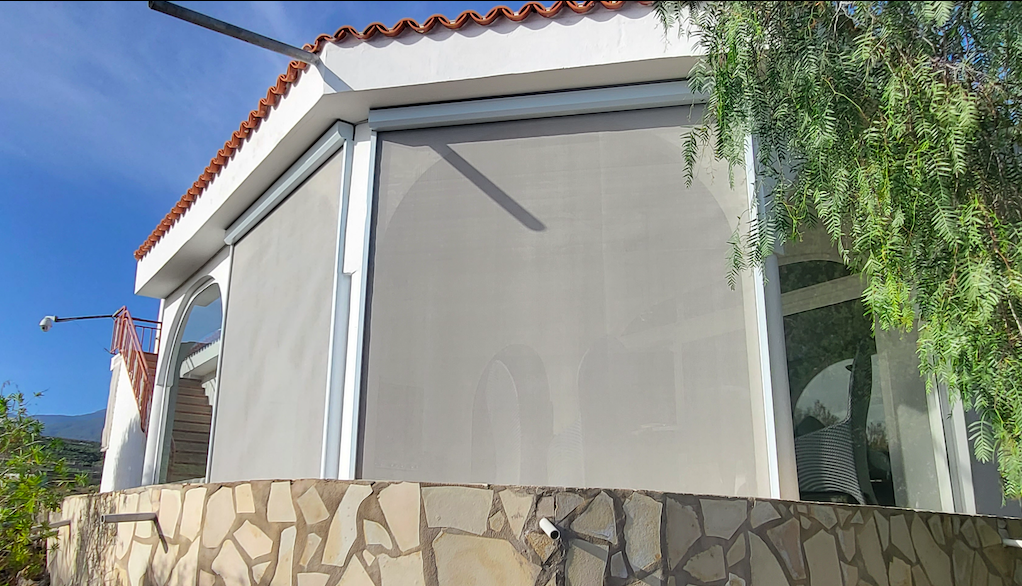

zipscreen installation 2

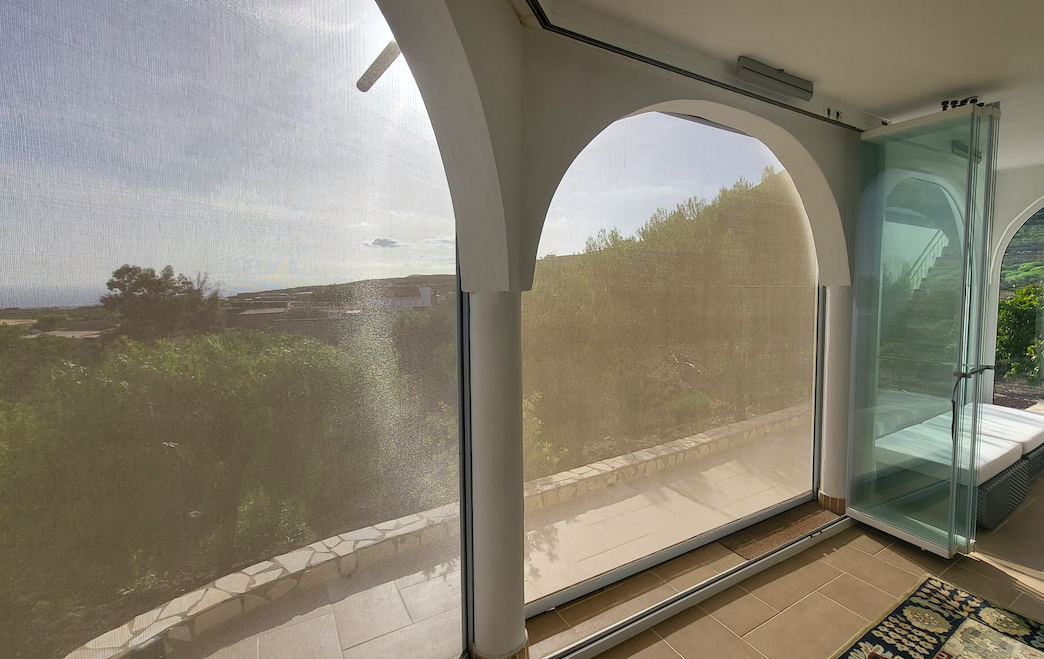

zipscreen mounted

Zipscreen Packages

We use carton box with angle packages to pack our zipscreen blinds. This type carton box package is solid and won't get damdage during the shipping.

zipscreen packages
