Full Cassette Retractable Awning with LED Lighting

  • DS003 WHITE
  • DS SHANGING
  • 2m, 3m, 4m, 5m, 6m
  • White, Black, Gray, Charcoal
  • 3 x 2m, 3.5 x 2.5m, 4 x 3m, 4 x 3.5m, 5 x 3m
  • 280gsm polyester, 300gsm 100% solution dyed acrylic (Waterproof & UV resist)
  • Full Cassette
  • 1.5m, 2m, 2.5m, 3m, 3.5m
Availability:
Quantity:

Features of Full Cassette Retractable Awning


* Compact structure and elegant modern appearance.

* Full cassette retractable awning frame are made of high strength aluminum alloy material and equip with stainless steel parts.

* Powder coating make sure the coating won't drop out.

* Closed cassette gives your fabric & moving arms the maximum protection. Reduce maintenance costs.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Full cassette retractable awning with adjustable pitch, angle can be adjusted from 15°- 30°.

* Offering many types of control for matching your difference needs.

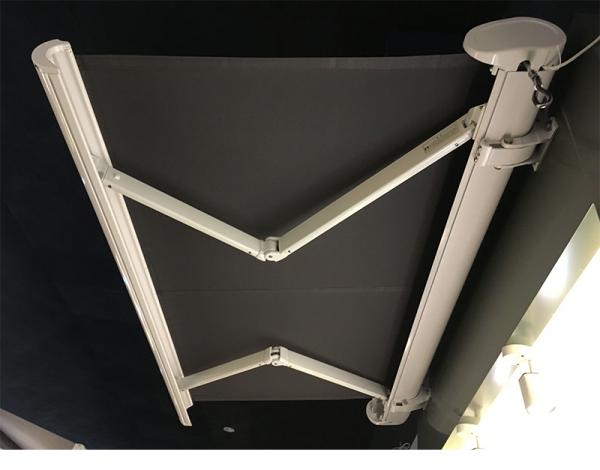

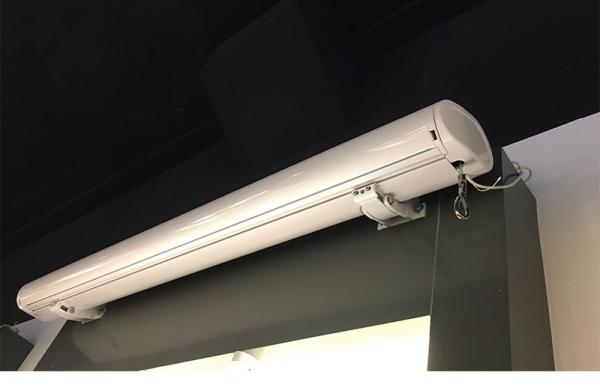

full cassette awning-23full cassette awning-24


Technical Specifications of Full Cassette Retractable Awning

Material

Aluminum frame + Awning fabric

Alu. Cassette

Top cassette: 165 x 48 x 2.2mm

Bottom cassette: 157 x 125 x 2.2mm

Alu. Arms

Big arm: 60 x 31 x 2.2mm

Small arm: 51 x 26 x 2.2mm

Alu. Roller tube

Φ78 x 1.0mm

Alu. Front bar

120 x 64 x 2.2mm

Standard brackets configuration

Width 2m-5m awning equip with 2 pcs wall brackets; Width 5.5m-6m awning equipwith 3 pcs wall brackets

Control methods

Manual only; remote control/wireless switch only; manual + remote control; manual + remote control + LED lighting; solar sensor (Wind Sun & Rain)

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic



Size Specifications of Full Cassette Retractable Awning

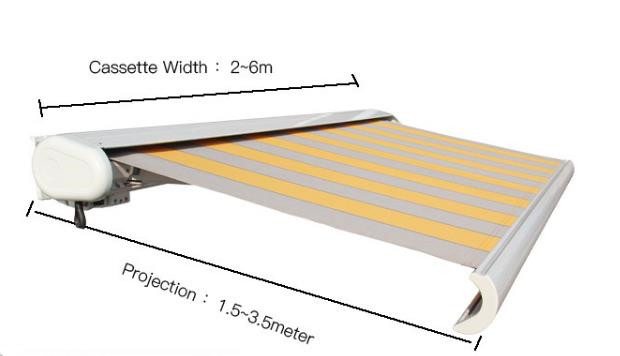

full cassette awning size

                                                  Width


Projection

 2.0m  2.5m   3.0m   3.5m   4.0m   4.5m   5.0m   5.5m    6m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft ≈ 14.8ft ≈ 16.4ft ≈ 18.0ft ≈ 19.7ft
1.5m ≈ 4.9ft








2.0m ≈ 6.5ft








2.5m ≈ 8.2ft








3.0m ≈ 9.8ft








3.5m ≈ 11.5ft








PS: only for 5.5m width full cassette awning, the maximum projection size actually is 3.4m



Optional for Full Cassette Retractable Awning


4 colors option for full cassette retractable awning cassette

Bright white, Bright black, Bright gray, Charcoal


full cassette awning aluminum frame color

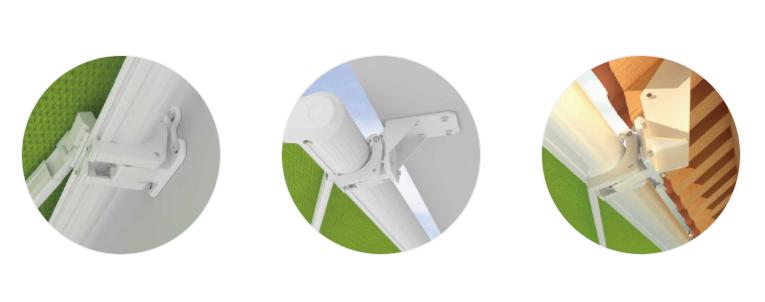

Installation brackets option for full cassette retractable awning


Alu. wall brackets, steel ceiling brackets, beam ceiling brackets

full cassette awning installation brackets


LED lines option for full cassette retractable awning


12V LED lines can be added in the folding arms, provides many an enjoyable moment for you.

6500K & 2700K LED lines are available


full cassette awning LED lighting




Valance option for full cassette retractable awning


You can choose to add valance design on the front bar of full cassette retractable awning or not

full cassette awning valance design


Control option for full cassette retractable awning


Manual via hand crank control; Motorized via remote control/wireless switch

Manual + remote control; Manual + remote control + LED lighting

Any motorized mode can plus solar Wind Sun and Rain sensor

full cassette awning control methods



Plug option for full cassette retractable awning



For motorized awning, we can replace your full cassette awning plug as your local plug type if you need, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(other type plug also can be customized in our here)




Fabric Option for Full Cassette Retractable Awning



1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 4-5 grade

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES






Full Cassette Retractable Awning Packages


We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.

full cassette awning packages




Full Cassette Retractable Awning Images

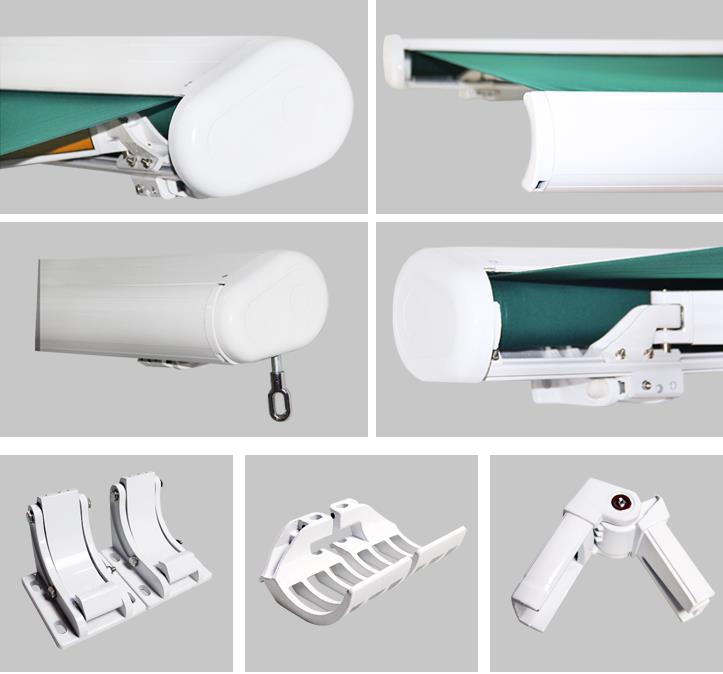

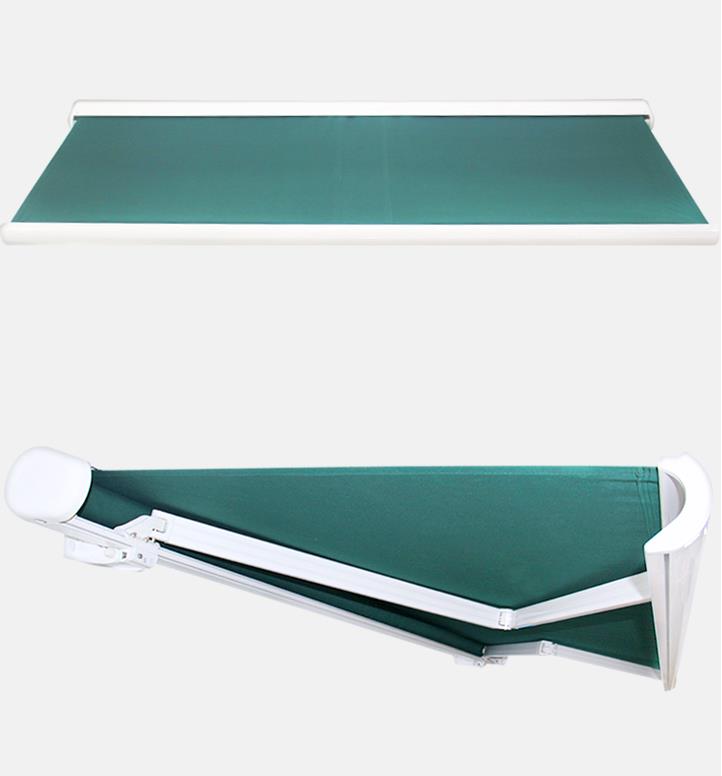

full cassette awning details 1 full cassette awning details 2



Full Cassette Retractable Awning Project

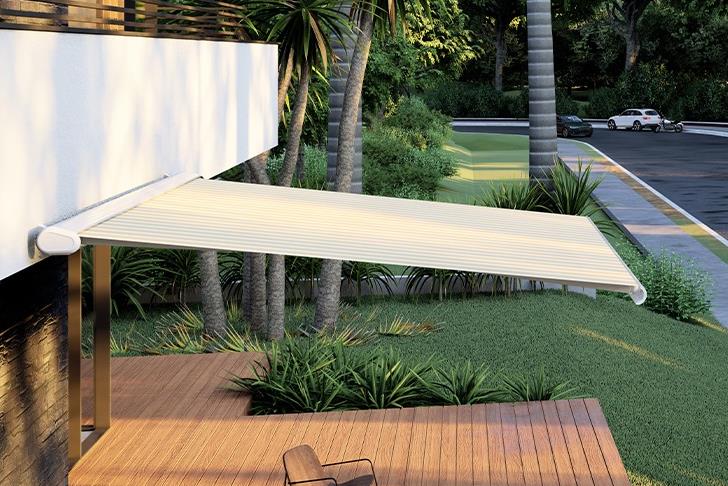

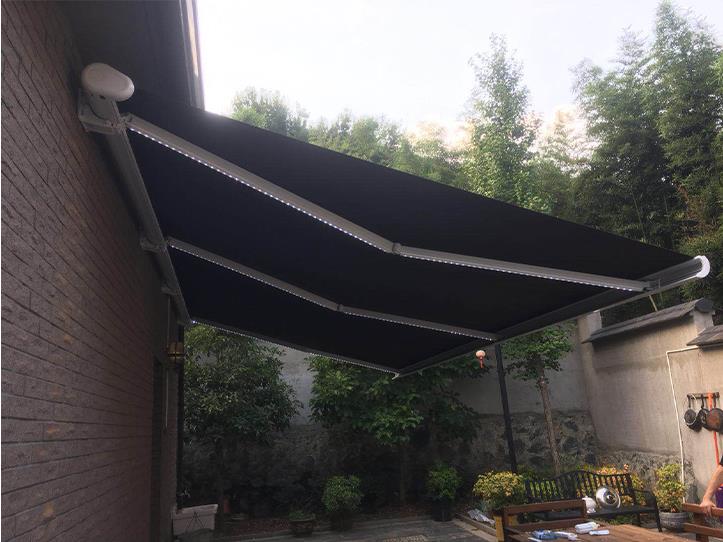

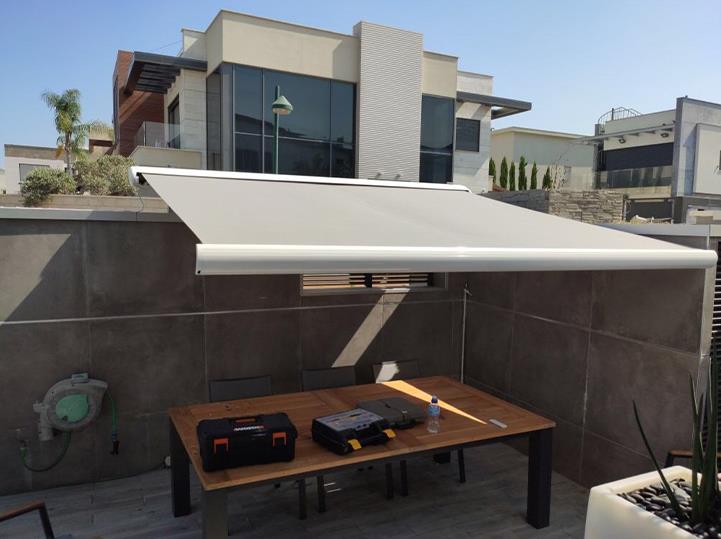

full cassette awning project photo 1 full cassette awning project 2 full cassette awning project 3


Full Cassette Retractable Awning Videos Display

We use high quality 100% solution dyed acrylic fabric to design our full cassette retractable awning. The fabric color fastness can get to 5 years in the sun exposure.
