Economic Full Cassette Retractable Awning

  • DS004


  • 2m, 3m, 4m, 5m, 6m

  • White

  • 3 x 2m, 3.5 x 2.5m, 4 x 3m, 5 x 3m, 6 x 3m

  • 280gsm polyester, 300gsm 100% solution dyed acrylic (Waterproof & UV resist)

  • Full Cassette

  • 1.5m, 2m, 2.5m, 3m


Features of Full Cassette Retractable Awning

* Compact structure and elegant modern appearance.

* Full cassette retractable awning frame are made of high strength aluminum alloy material

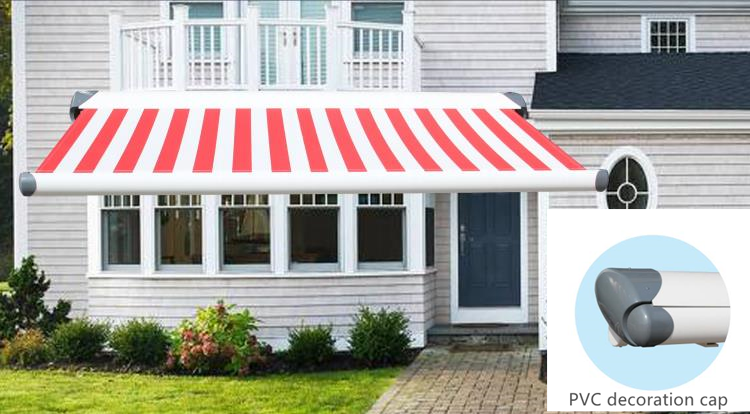

* Special design of PVC decoration cap on full cassette retractable awning's cassette

* High quality of powder coating make sure the coating won't drop out.

* Closed cassette gives your fabric & moving arms the maximum protection. Reduce maintenance costs.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Full cassette retractable awning with adjustable pitch, angle can be adjusted from 15°- 45°.

* Offering many types of control for matching your difference needs.

full cassette awning-12

Technical Specifications for Full Cassette Retractable Awning


Aluminum frame + Awning fabric

Alu. Cassette

210 x 110 x 2.0mm

Alu. Arms

Big arm: 60 x 30 x 2.0mm

Small arm: 53.3 x 27 x 1.5mm

Alu. Roller tube

Φ70 x 1.3mm

Alu. Front bar

80 x 40 x 1.3mm

Alu. beam

40 x 40 x 2.0mm

Standard brackets configuration

Width 2m-5m awning equip with 2 pcs wall brackets; Width 5.5m-6m awning equip with 3 pcs wall brackets

Control methods

Manual only; remote control/wireless switch only; manual + remote control; manual + remote control + LED lighting; solar sensor (Wind Sun & Rain)

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic

Size Specifications for Full Cassette Retractable Awning

full cassette awning -3



2.0m 2.5m 3.0m 3.5m 4.0m 4.5m 5.0m 5.5m 6m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft ≈ 14.8ft ≈ 16.4ft ≈ 18.0ft ≈ 19.7ft
1.5m ≈ 4.9ft

2.0m ≈ 6.5ft

2.5m ≈ 8.2ft

3.0m ≈ 9.8ft

Optional for Full Cassette Retractable Awning

Installation brackets of full cassette retractable awning

Different types of awning installation brackets are available

Meet the requirements of different installation environments

Brackets are made of aluminum material, durable & stronger

full cassette awning -4

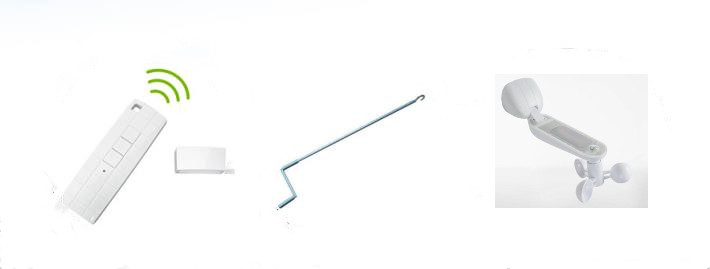

Control option of full cassette retractable awning

Manual via hand crank control; Motorized via remote control/wireless switch

Manual + remote control; Manual + remote control + LED lighting

Any motorized mode can plus solar Wind Sun and Rain sensor.

full cassette awning-4

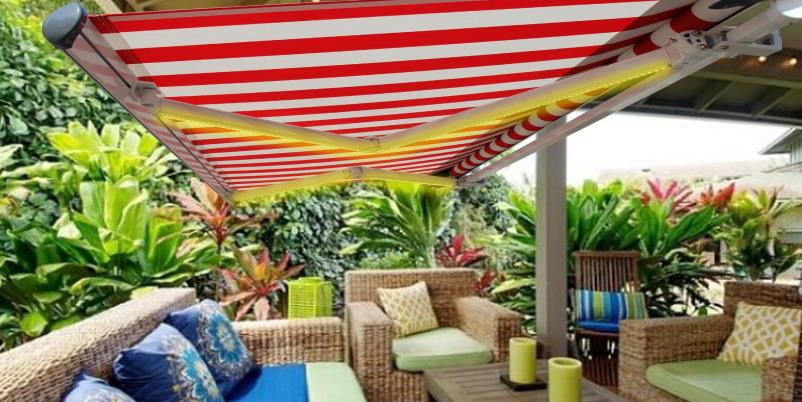

LED light option of full cassette retractable awning

12V LED lines can add in the awning retractable arms, provides many an enjoyable moment for you.

full cassette awning -5

Plug option of full cassette retractable awning

For full cassette retractable motorised awning, we can replace your full cassette retractable awning plug as your local plug type if you need, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(Other type plug also can be customized in our here)

Fabric option of full cassette retractable awning

1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 4-5 grade

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES

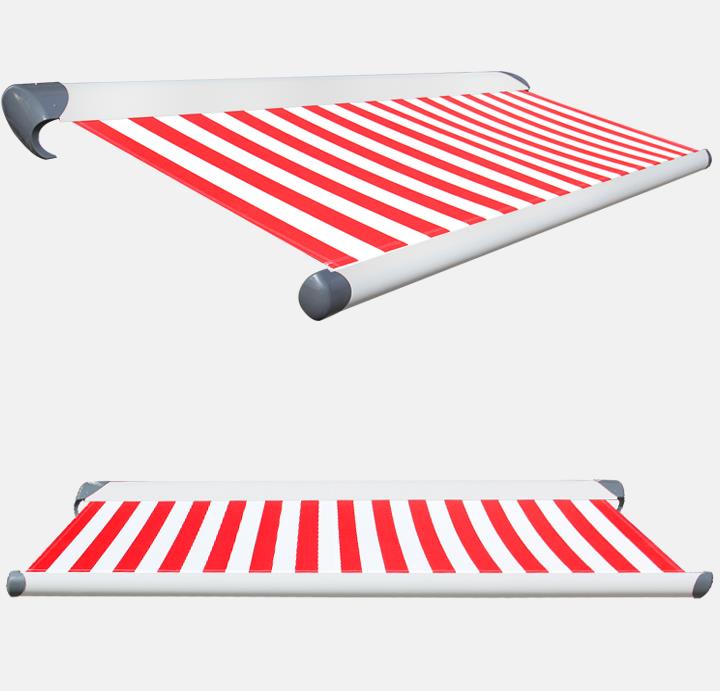

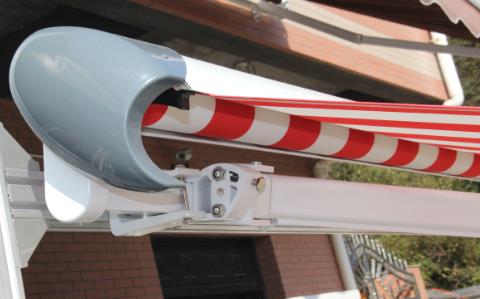

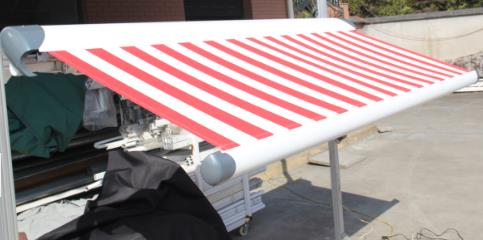

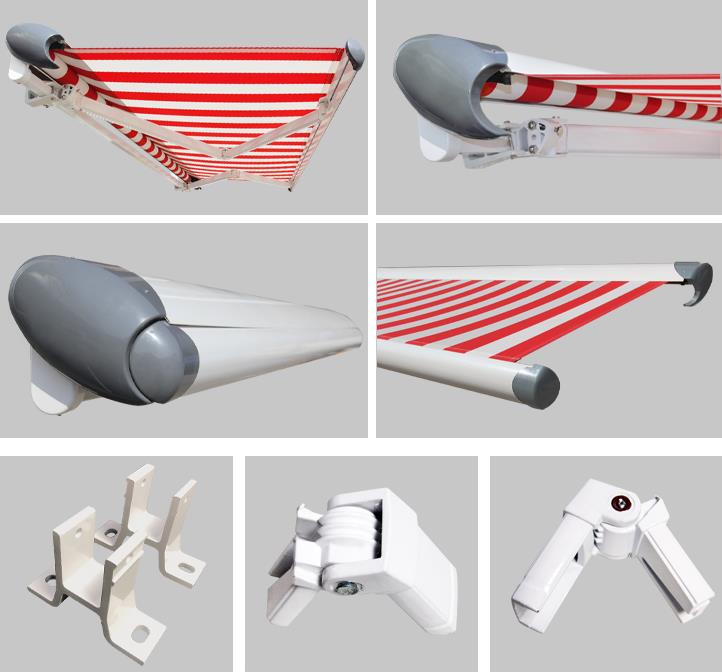

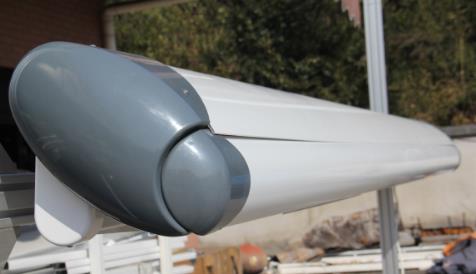

Full Cassette Retractable Awning Images

full cassette awning -6full cassette awning -7full cassette awning -8full cassette awning -9full cassette awning-11

Full Cassette Retractable Awning Packages

We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.

carton box packages for awningwooden case packages for awning
