Full Cassette Folding Arm Motorised Awning

  • DS008
  • DS SHADING
  • 2m, 3m, 4m, 5m, 6m
  • Charcoal
  • 3 x 2m, 3.5 x 2.5m, 4 x 3m, 4 x 3.5m, 5 x 3m
  • 280gsm polyester, 300gsm 100% solution dyed acrylic (Waterproof & UV resist)
  • Full Cassette
  • 1.5m, 2m, 2.5m, 3m, 3.5m
Availability:
Quantity:

Features of Full Cassette Folding Arm Motorised Awning


* 3 cassette design, let awning cassette extra compact and elegant modern appearance.

* The cassette of full cassette folding arm motorised awning are made of high strength aluminum alloy thickened profiles.

* Matte appearance powder coating comes with high scratch resistance.

* LED spotlights which can be mounted in groove below the full cassette awning cassette.

* Closed cassette gives your fabric & moving arms the maximum protection. Reduce maintenance costs.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Full cassette folding arm motorised awning with adjustable pitch, angle can be adjusted from 15°- 45°.

* Offering many types of control for matching your difference needs.

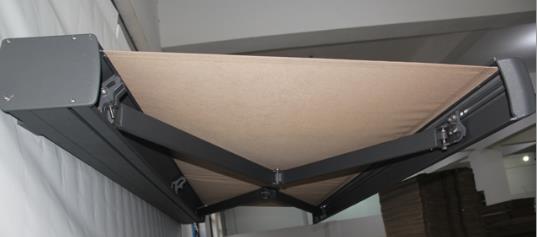

full cassette awning -4



Technical Specifications of Full Cassette Folding Arm Motorised Awning


Material

Aluminum frame + Awning fabric

Alu. Cassette

Top cassette: 167 x 16 x 2.5mm

Bottom cassette: 153 x 15 x 2.5mm

Back cassette: 150 x 55 x 3.0mm

Fabric tray

143 x 37 x 2.0mm

Alu. Arms

Big arm: 65 x 30 x 2.2mm

Small arm: 58 x 27 x 2.0mm

Alu. Roller tube

Φ70 x 1.2mm

Alu. Front bar

145 x 67 x 3.3mm

Standard brackets configuration

Width 2m-5m awning equip with 2 pcs brackets; Width 5.5m-6m awning equip with 3 pcs brackets

Control methods

Manual only; remote control/wireless switch only; manual + remote control; manual + remote control + LED lighting; solar sensor (Wind Sun & Rain)

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic

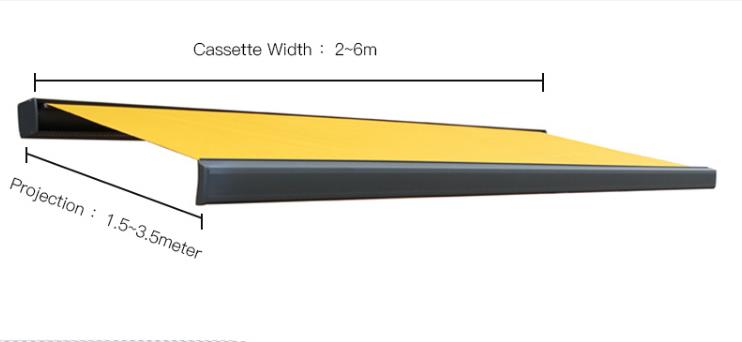

Size Specifications of Full Cassette Folding Arm Motorised Awning

full cassette awning size

                                              Width


Projection

 2.0m  2.5m  3.0m   3.5m   4.0m   4.5m   5.0m   5.5m    6m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft ≈ 14.8ft ≈ 16.4ft ≈ 18.0ft ≈ 19.7ft
1.5m ≈ 4.9ft








2.0m ≈ 6.5ft








2.5m ≈ 8.2ft








3.0m ≈ 9.8ft








3.5m ≈ 11.5ft








PS: only for 5.5m width full cassette folding arm motorised awning awning, the maximum projection size actually is 3.4m



Design Highlights of Full Cassette Folding Arm Motorised Awning

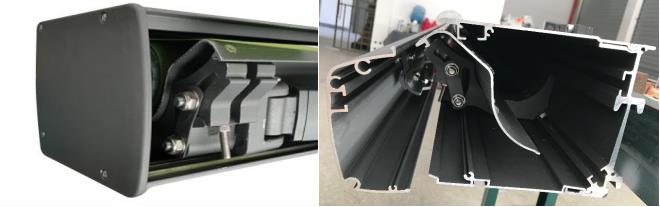

1. Full cassette folding arm motorised awning cassette

We use square structure cassette. Different from Mode DS003 full cassette awning, we use 3 cassette structure with fabric tray. It's a only one of full cassette type awning can protect tubular motor & awning fabric at the same time.


full cassette awning cassette design

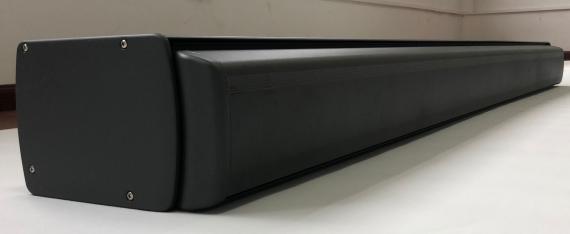

2. Surface treatment of full cassette folding arm motorised awning


We choose high-scratch resistance coating, matte dark coating makes this full cassette folding arm motorised awning looks more high-end. The overall appearance is simple and modern.


full cassette awning surface treatment

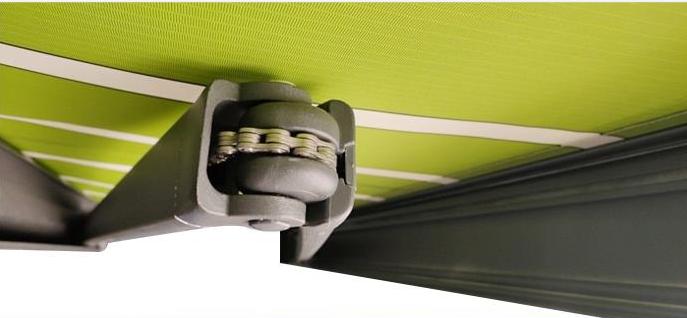

3. Retractable arms of full cassette folding arm motorised awning


We use non rusting stainless steel chains in the full cassette motorised awning retractable arms. It comes with stable operation and no noise. It's a strongest available in the industry.


full cassette awning stainless steel arms

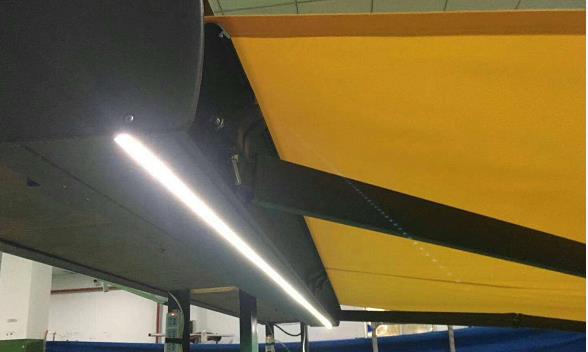

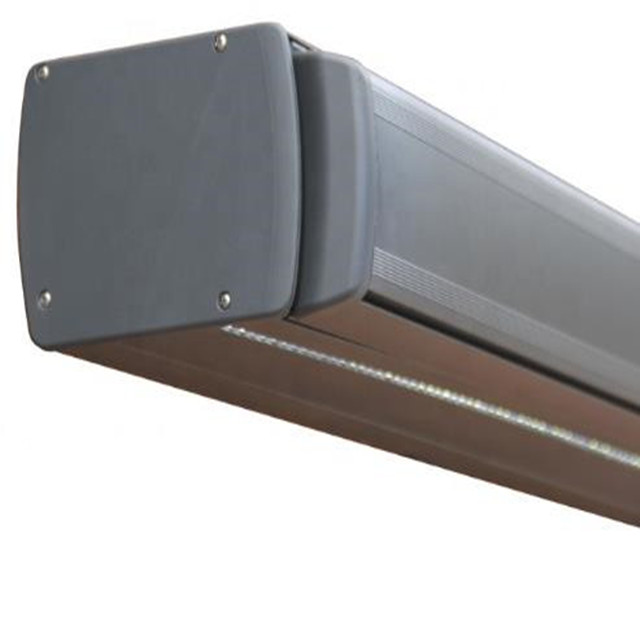

4. LED lighting on the full cassette folding arm motorised awning


On the below of the full cassette motorised awning cassette, we also can add a groove for mounting the LED lines. Our humanized design meets your different needs for full cassette awnings.


full cassette awning LED lighting 1 full cassette awning LED lighting 2

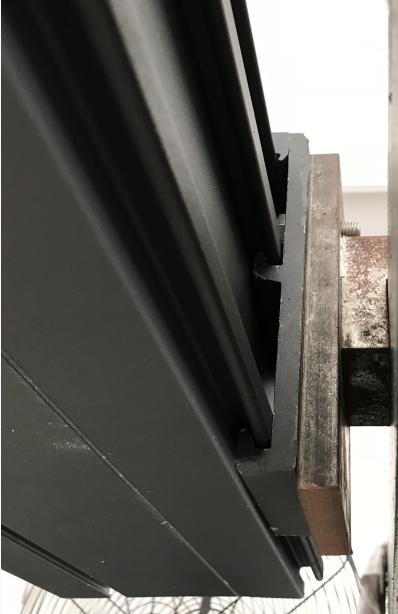

5. Instllation brackets for full cassette folding arm motorised awning


This type of full cassette folding arm motorised awning are equipped with ultra-thin mounting bracket, allow the awning to cling to building facade. Present the most perfect installation effect.

full cassette awning installation brackets



6. Control methods of full cassette folding arm motorised awning


Manual via hand crank control; Motorised via remote control/wireless switch

Manual + remote control; Manual + remote control + LED lighting

Any motorised mode can plus solar Wind Sun and Rain sensor

full cassette awning control methods



7. Awning plugs of full cassette folding arm motorised awning


For motorised awning, we can replace your full cassette awning plug as your local plug type if you need, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(other type plug also can be customized in our here)



Fabric Option for Full Cassette Folding Arm Motorised Awning


1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 4-5 grade.

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade.

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES




Full Cassette Folding Arm Motorised Awning Packages

We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.

full cassette awning packages

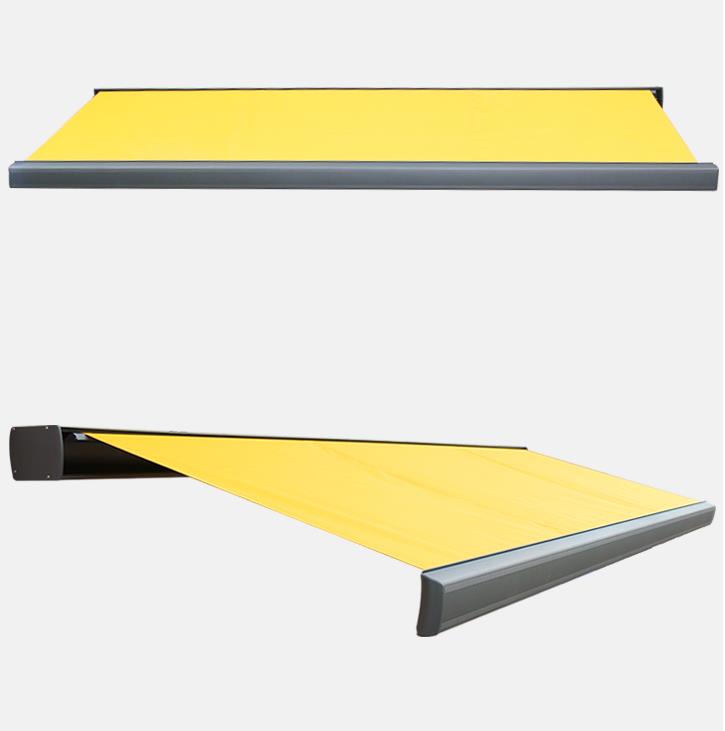

Full Cassette Folding Arm Motorised Awning Images

full cassette awning details 1 full cassette awning details 2

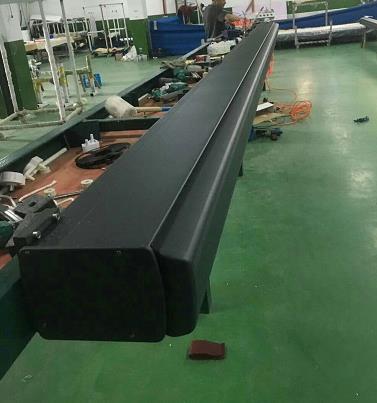

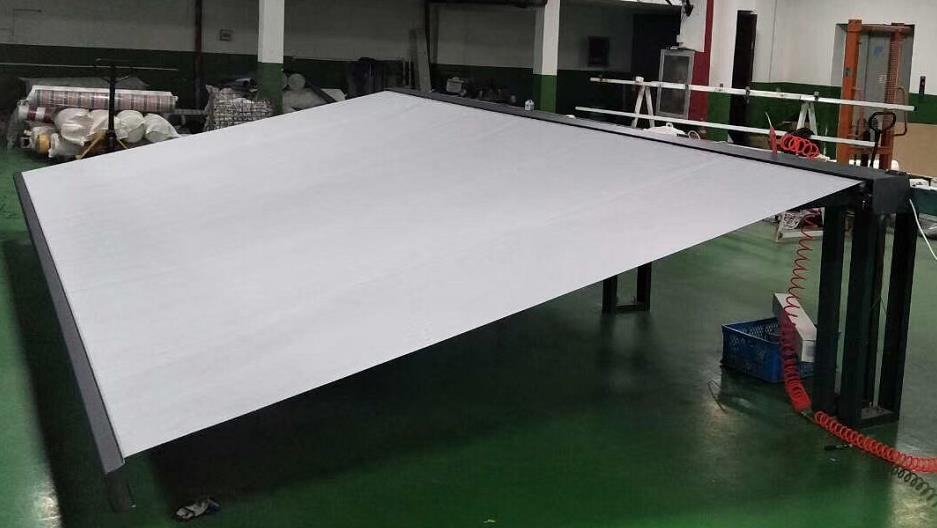

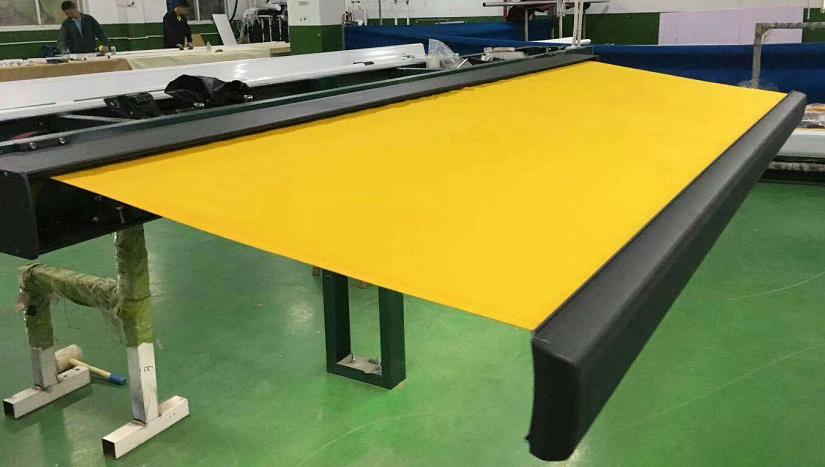

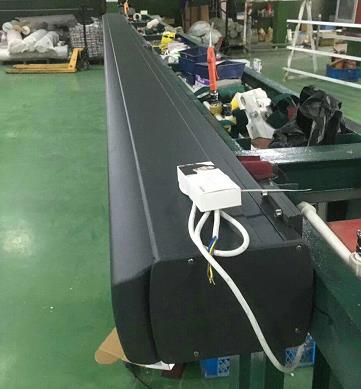

Production Photos for Full Cassette Folding Arm Motorised Awning



full cassette awning production photo 1 full cassette awning production photo 2 full cassette awning production photo 4 full cassette awning production photo 3



Full Cassette Folding Arm Motorised Awning Videos

DS008 model full cassette folding arm motorised awning with square cassette structure, design LED lighting on it. The appearance more modern & elegant.
