Semi Cassette Type Retractable Awning For Promotion

  • DS610

  • DS SHANGING

  • White, Black, Gray

  • Width: 2-4.5m; Projection: 1.5-3m

  • 280gsm Polyester; 300gsm Acrylic

Availability:
Quantity:

Features


* Small size semi cassette, help you to save purchase cost.

* Semi cassette can protect your fabric well when the awning fully close.

* The frame are made of high strength aluminum alloy material.

* 280℃ electrostatic powder coating make sure the coating won't drop out.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Awning with adjustable pitch, angle can be adjusted from 15°- 45°.



Material Specifications


Material

Aluminum frame + Awning fabric

Alu. arms

Big arm: 40 x 20 x 1.1mm

Small arm: 37 x 21 x 1.1mm

Alu. roller tube

Φ68 x 1.0mm

Alu. front bar

47 x 34 x 1.1mm

Torsion bar

35 x 35 x 1.0mm

Standard brackets configuration

Equipped with 2 wall brackets

Control methods

Manual only; remote control only

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic




Size Specifications


             Width

Projection

2.0m 2.5m 3.0m 3.5m 4.0m 4.5m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft ≈ 14.8ft
1.5m ≈ 4.9ft





2.0m ≈ 6.5ft





2.5m ≈ 8.2ft





3.0m ≈ 9.8ft







Optional

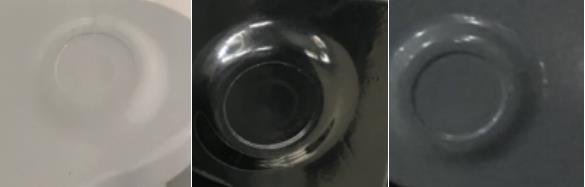

Awning frame color option


White, Black & Gray


retractable awning frame color



Installation brackets option


Different types of awning installation brackets are available

Meet the requirements of different installation environments

Brackets are made of aluminum material, durable & stronger

retractable awning brackets



Control option


Manual via hand crank control; Motorized via remote control.

Any motorized mode can plus solar Wind Sun and Rain sensor.

retractable awning control methods



Plug option


For motorized awning, we can replace the awning plug as your local plug type if you need, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(Other type plug also can be customized in our here)



Fabric option


1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 4-5 grade

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES




Details Photo Display

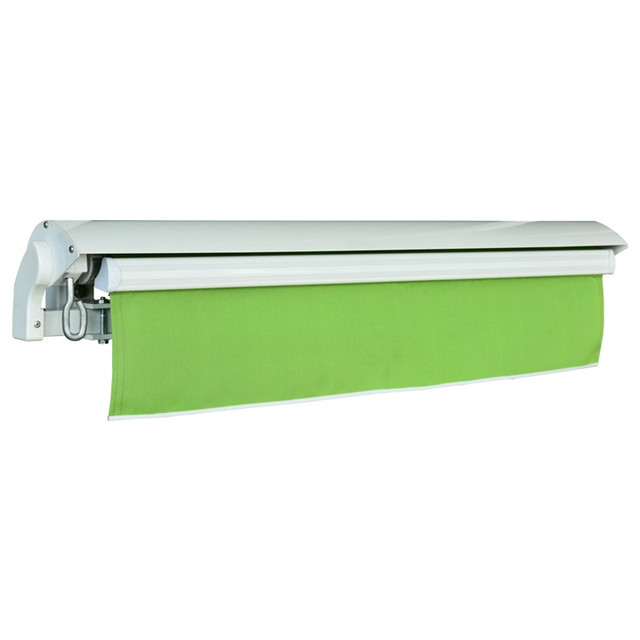

semi cassette retractable awning 1

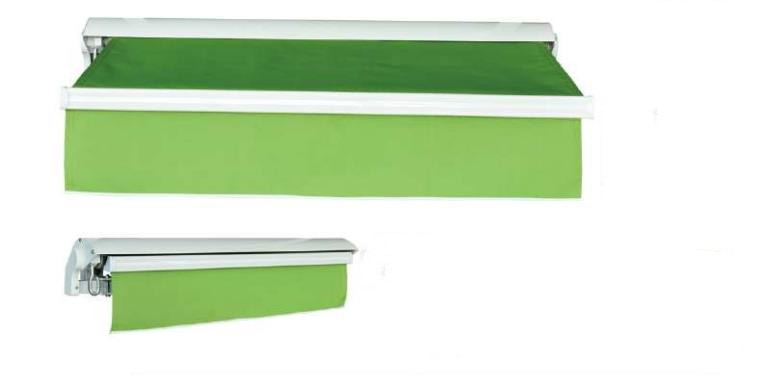

semi cassette retractable awning 3



Packages


We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.

retractable awning packages



Awning Installation Video


Our semi cassette awning are easy to install, we will equip with a complete installation brackets and screws for you.
