Full Cassette Folding Arm Awning

  • DS003 GRAY

  • DS SHADING

  • 2m, 3m, 4m, 5m, 6m

  • White, Black, Gray, Charcoal

  • 3 x 2m, 3.5 x 2.5m, 4 x 3m, 4 x 3.5m, 5 x 3m

  • 280gsm polyester, 300gsm 100% solution dyed acrylic (Waterproof & UV resist)

  • Full Cassette

  • 1.5m, 2m, 2.5m, 3m, 3.5m

Availability:
Quantity:

Features of Full Cassette Folding Arm Awning


* Compact structure and elegant modern appearance.

* Full cassette folding arm awning frame are made of high strength aluminum alloy material and equip with stainless steel parts.

* High quality powder coating make sure the coating won't drop out.

* Closed cassette gives your fabric & moving arms the maximum protection. Reduce maintenance costs.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Full cassette folding arm awning with adjustable pitch, angle can be adjusted from 15°- 30°

* Offering many types of control for matching your difference needs.

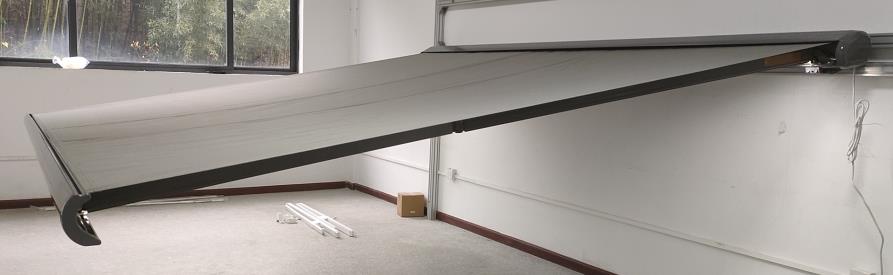

full cassette awning-10


Technical Specifications of Full Cassette Folding Arm Awning



Material

Aluminum frame + Awning fabric

Alu. Cassette

Top cassette: 165 x 48 x 2.2mm

Bottom cassette: 157 x 125 x 2.2mm

Alu. Arms

Big arm: 60 x 31 x 2.2mm

Small arm: 51 x 26 x 2.2mm

Alu. Roller tube

Φ78 x 1.0mm

Alu. Front bar

120 x 64 x 2.2mm

Standard brackets configuration

Width 2m-5m awning equipped with 2 wall brackets; Width 5.5m-6m awning equipped with 3 wall brackets

Control methods

Manual only; remote control/wireless switch only; manual + remote control; manual + remote control + LED lighting; solar sensor (Wind Sun & Rain)

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic

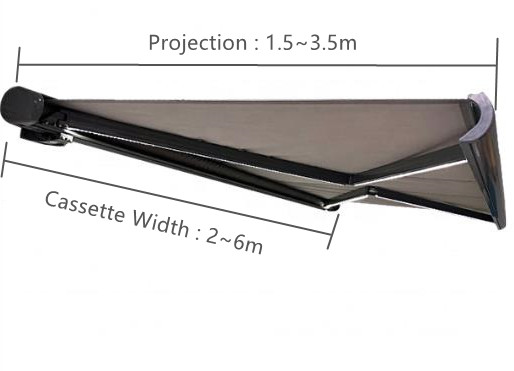

Size specifications of Full Cassette Folding Arm Awning


full cassette awning size

                                                   Width


   Projection

 2.0m  2.5m   3.0m   3.5m   4.0m   4.5m   5.0m   5.5m    6m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft ≈ 14.8ft ≈ 16.4ft ≈ 18.0ft ≈ 19.7ft
1.5m ≈ 4.9ft








2.0m ≈ 6.5ft








2.5m ≈ 8.2ft








3.0m ≈ 9.8ft








3.5m ≈ 11.5ft








PS: only for 5.5m width full cassette folding arm awning, the maximum projection size actually is 3.4m




Optional for Full Cassette Folding Arm Awning


4 colors option for full cassette folding arm awning cassette

Bright white, Bright black, Bright gray, Charcoal


full cassette awning aluminum frame color



Installation brackets option for full cassette folding arm awning

Alu. wall brackets, steel ceiling brackets, beam ceiling brackets

full cassette awning installation brackets




LED lines option for full cassette folding arm awning

12V LED lines can be added in the folding arms, provides many an enjoyable moment for you.

6500K & 2700K LED lines are available

full cassette awning LED lighting




Valance option for full cassette folding arm awning

You can choose to add valance design on the front bar of full cassette awning or not

full cassette awning valance design

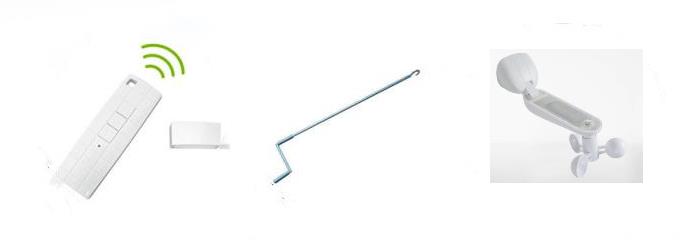

Control option for full cassette folding arm awning

Manual via hand crank control; Motorized via remote control/wireless switch

Manual + remote control; Manual + remote control + LED lighting

Any motorized mode can plus solar Wind Sun and Rain sensor

full cassette awning control methods




Plug option for full cassette folding arm awning

For motorized awning, we can replace your full cassette awning plug as your local plug type if you need, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(Other type plug also can be customized in our here).




Fabric option for Full Cassette Folding Arm Awning


1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 4-5 grade.

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade.

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES




Full Cassette Folding Arm Awning Packages


We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.

full cassette awning packages




Full Cassette Folding Arm Awning Images

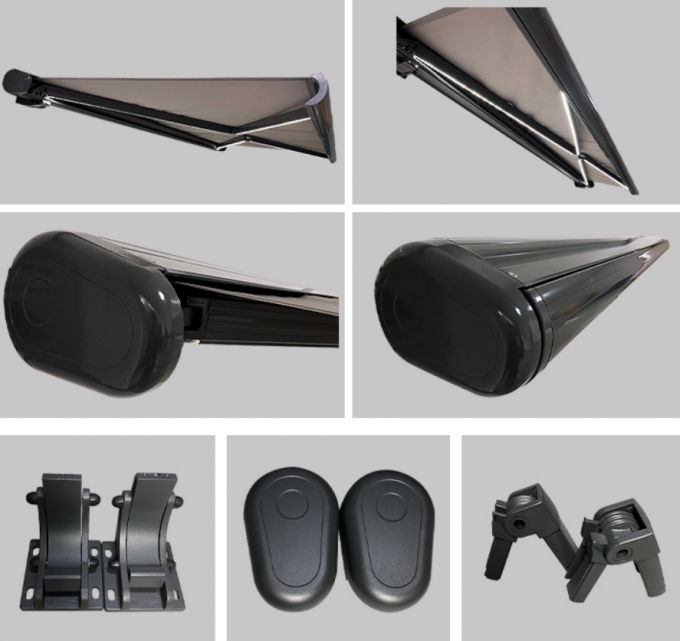

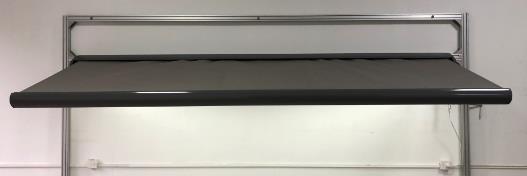

full cassette awning details photo full cassette awning details photo 1

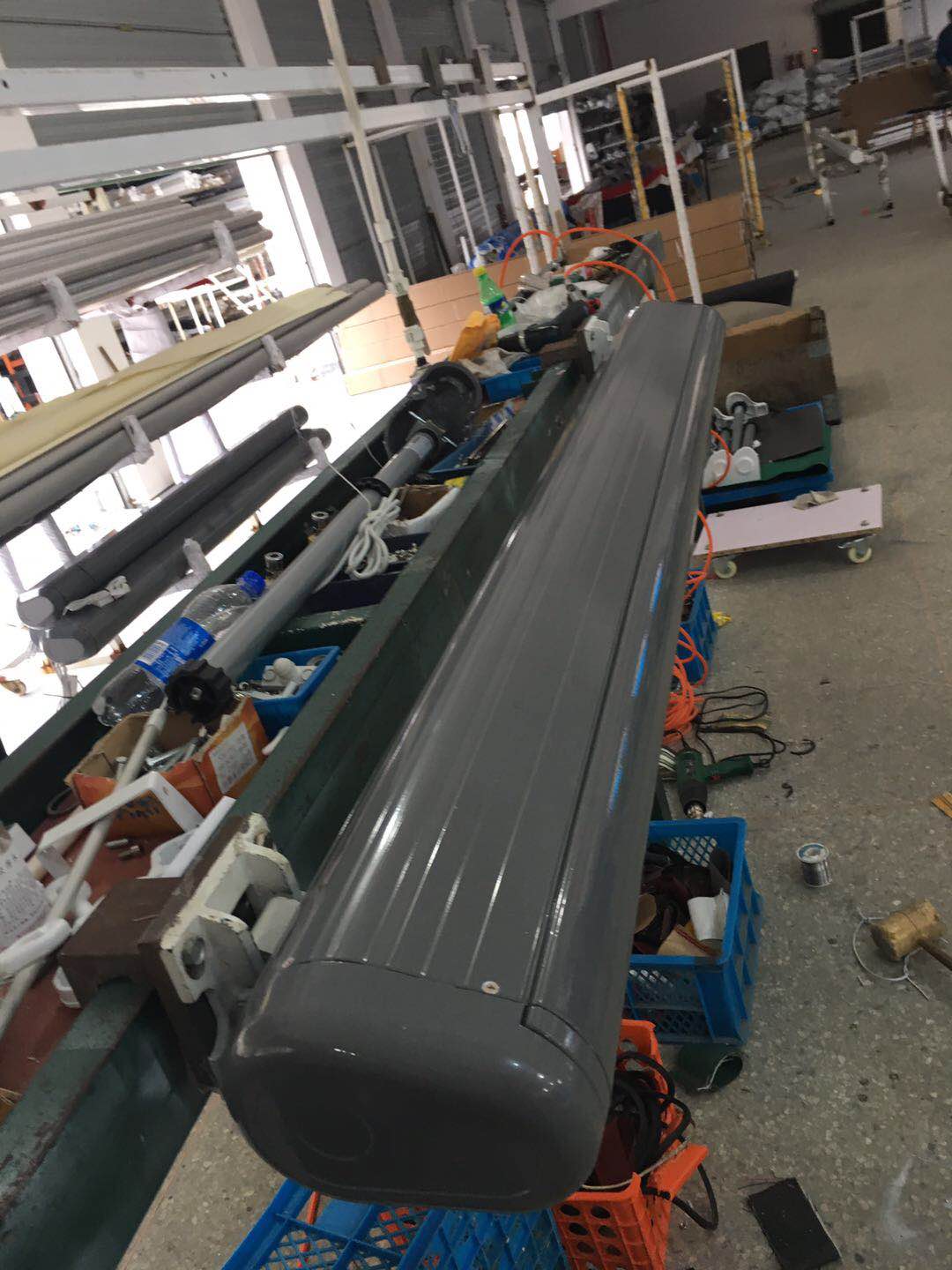

full cassette awning details photo 2 pg
