Retractable Semi Cassette Awning

  • DS002
  • DS SHANGING
  • White
  • Width: 2-6m; Projection: 1.5-3m
  • 280gsm Polyester; 300gsm Acrylic
Availability:
Quantity:

Features


* The awning frame are made of high strength aluminum alloy material.

* 280℃ electrostatic powder coating make sure the coating won't drop out.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Awning with adjustable pitch, angle can be adjusted from 15°- 45°.

* LED lines can be add in retractable arms.



Design Highlights


1. Semi cassette gives the awning most part of fabric & moving arms the maximum protection. Compare with full cassette type awning, it can help you to save some purchase cost on the production.

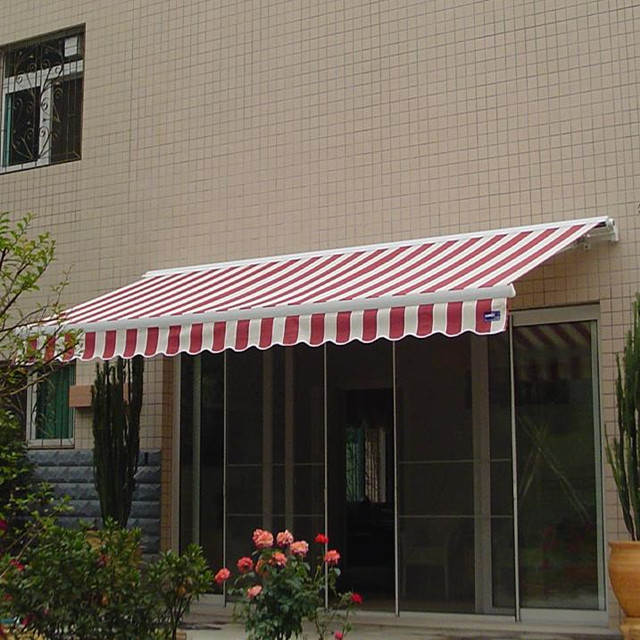

semi cassette awning-1

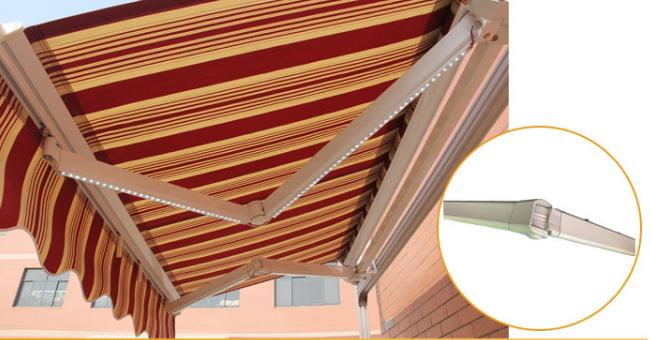

2. Awning retractable arms are made of aluminium alloy material and dual cable spring-loaded, ensure optimum fabric tension at every position.

semi cassette awning retractable arms

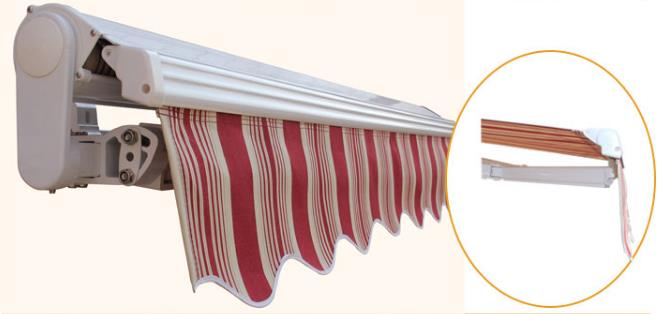

3. On the awning front bar, we add the valance on it, it will looks more romantic and elegant.

semi cassette awning valance design



Material Specifications


Material

Aluminum frame + Awning fabric

Alu. Cassette

145 x 110 x 1.8mm

Alu. Arms

Big arm: 60 x 30 x 2.0mm

Small arm: 53.3 x 27 x 1.5mm

Alu. Roller tube

Φ70 x 1.3mm

Alu. Front bar

75 x 65 x 1.2mm

Alu. beam

40 x 40 x 2.0mm

Standard brackets configuration

Width 2m-5m awning equipped with 2 wall brackets; Width 5.5m-6m awning equipped with 3 wall brackets

Control methods

Manual only; remote control/wireless switch only; manual + remote control; manual + remote control + LED lighting; solar sensor (Wind Sun & Rain)

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic



Size Specifications

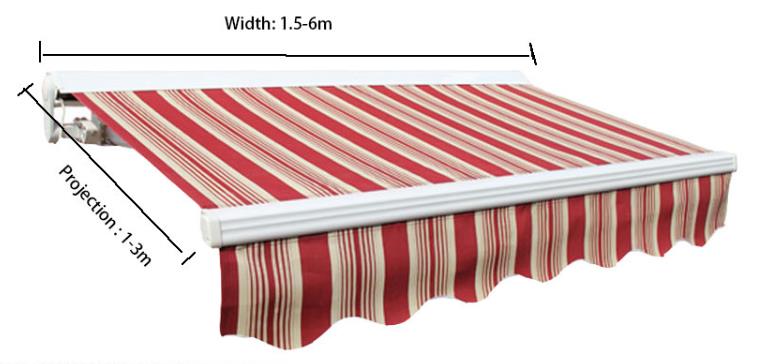

semi cassette awning size


                 Width

Projection

2.0m 2.5m 3.0m 3.5m 4.0m 4.5m 5.0m 5.5m 6m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft ≈ 14.8ft ≈ 16.4ft ≈ 18.0ft ≈ 19.7ft
1.5m ≈ 4.9ft







2.0m ≈ 6.5ft








2.5m ≈ 8.2ft








3.0m ≈ 9.8ft










Optional

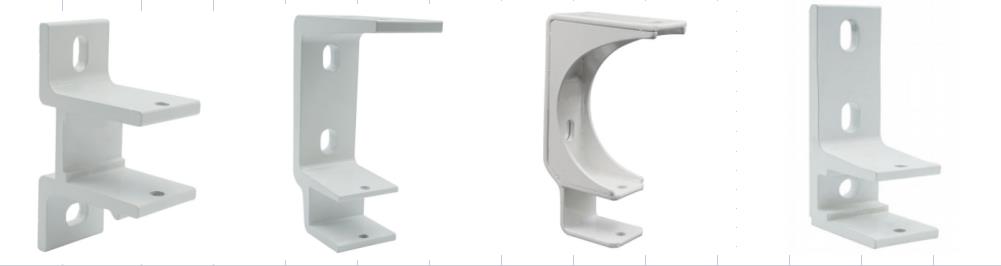

Installation brackets

Different types of awning installation brackets are available

Meet the requirements of different installation environments

Brackets are made of aluminum material, durable & stronger


retractable awning brackets

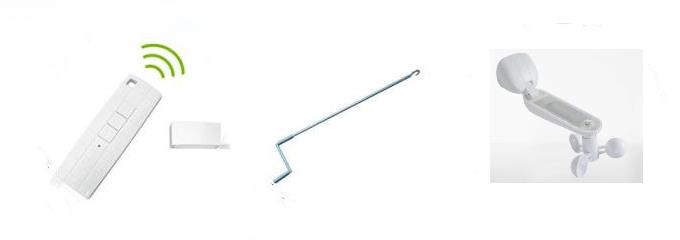

Control option

Manual via hand crank control; Motorized via remote control/wireless switch

Manual + remote control; Manual + remote control + LED lighting

Any motorized mode can plus solar Wind Sun and Rain sensor.

retractable awning control methods



LED light option

12V LED lines can add in the folding arms, provides many an enjoyable moment for you.

semi cassette awning LED lighting



Plug option

For motorized awning, we can replace your awning plug as your local plug type if you need, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(Other type plug also can be customized in our here)




Fabric option

1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 4-5 grade

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES




Details Photo Display

semi cassette awning details photo 1semi cassette awning details photo 2semi cassette awning details photo 3semi cassette awning details photo 4semi cassette awning details photo 5



Packages


We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.


semi cassette awning packages
