Manual/ Motorized Patio Retractable Awning

  • DS005


  • White

  • Width: 2-4m; Projection: 1.5-2m

  • 280gsm Polyester; 300gsm Acrylic



* Economic design for promotion.

* The awning frame are made of high strength aluminum alloy material.

* 280℃ electrostatic powder coating make sure the coating won't drop out.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Awning with adjustable pitch, angle can be adjusted from 15°- 45°.

manual retractable awning -2

Material Specifications


Aluminum frame + Awning fabric

Alu. Arms

Big arm: 48 x 28 x 1.1mm

Small arm: 38 x 20 x 1.1mm

Alu. Roller tube

Φ70 x 1.3mm

Alu. Front bar

45 x 35 x 1.2mm

Torsion bar

35 x 35 x 1.0mm

Standard brackets configuration

Equipped with 2 wall brackets

Control methods

Manual only; remote control only

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic

Size Specifications

manual retractable awning-1



2.0m 2.5m 3.0m 3.5m   4.0m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft
1.5m ≈ 4.9ft

2.0m ≈ 6.5ft

Design Highlights

1. Tradition design with economic & good quality

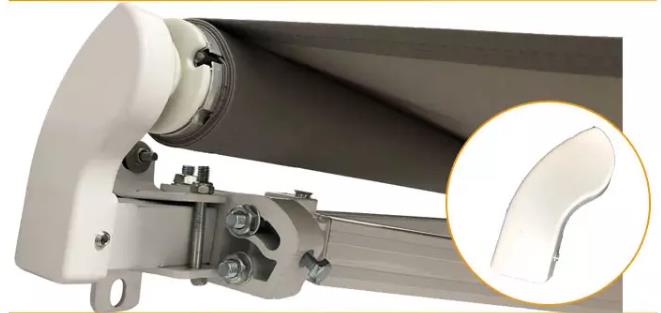

manual retractable awning caps

2. Economic design with good appreance

Design of nice front bar, make your awning classy

manual retractable awning front bar

3. Design of valance makes awning more romantic and elegant

manual retractable awning -3

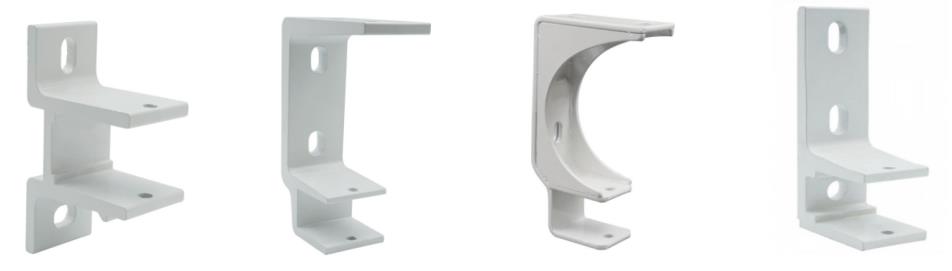

Installation brackets option

Different types of awning installation brackets are available

Meet the requirements of different installation environments

Brackets are made of aluminum material, durable & stronger

manual retractable awning installation brackets -4

Control option

Manual via hand crank control; Motorized via remote control.

Any motorized mode can plus solar Wind Sun and Rain sensor.

manual retractable awning control

Plug option

For motorized awning, we can replace your awning plug as your local plug type if youneed, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(Other type plug also can be customized in our here)

Fabric option

1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 5-6 grade

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES

Details Photo Display

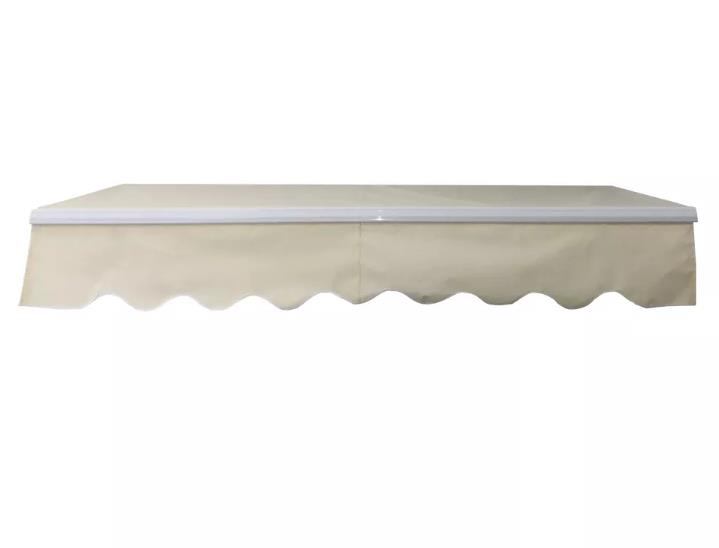

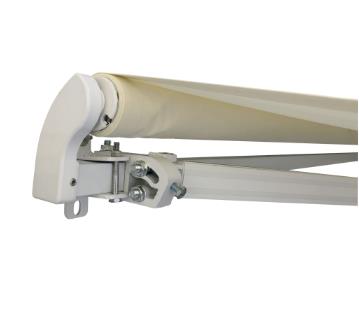

manual retractable awning display 1manual retractable awning display 2manual retractable awning display 3manual retractable awning display 3


We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.

carton box packages for awningwooden case packages for awning

Project Display

manual retractable awning project 2manual retractable awning project 1


This retractable awning use hand crank to control, economic design for promotion, cheap price gives you the best enjoy.
