Manual Outdoor Patio Sun Shade Retractable Awning

  • DS620
  • DS SHANGING
  • White, Black, Gray
  • Width: 2-6m; Projection: 1.5-3m
  • 280gsm Polyester; 300gsm Acrylic
Availability:
Quantity:

Features


* Economic design for promotion.

* Rain cover create a dry area for awning to protect the fabric.

* The frame are made of high strength aluminum alloy material.

* 280℃ electrostatic powder coating make sure the coating won't drop out.

* Special treatments on fabric, it comes with the function of mold-proof, water-proof, stain resistant and UV protection.

* Awning with adjustable pitch, angle can be adjusted from 15°- 45°.


Material Specifications

Material

Aluminum frame + Awning fabric

Alu. arms

Big arm: 48 x 28 x 1.1mm

Small arm: 38 x 20 x 1.1mm

Alu. roller tube

Φ68 x 1.0mm

Alu. front bar

56 x 43 x 1.2mm

Alu. cassette 163 x 35 x 1.2mm

Torsion bar

35 x 35 x 1.0mm

Standard brackets configuration

Equipped with 2 wall brackets

Control methods

Manual only; remote control only

Awning fabric

280gsm Polyester

300gsm 100% solution dyed acrylic



Size Specifications

          Width

Projection

2.0m 2.5m 3.0m 3.5m 4.0m 4.5m 5.0m 5.5m 6m
≈ 6.5ft ≈ 8.2ft ≈ 9.8ft ≈ 11.5ft ≈ 13.1ft ≈ 14.8ft ≈ 16.4ft ≈ 18.0ft ≈ 19.7ft
1.5m ≈ 4.9ft








2.0m ≈ 6.5ft








2.5m ≈ 8.2ft








3.0m ≈ 9.8ft










Optional

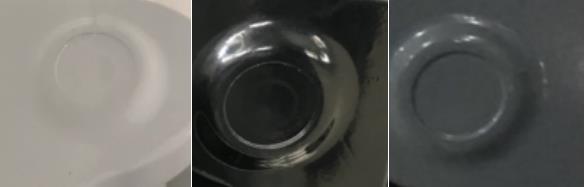

Awning frame color option

White, Black & Gray

awning frame color



Installation brackets option

Different types of awning installation brackets are available

Meet the requirements of different installation environments

Brackets are made of aluminum material, durable & stronger

full cassette awning -4



Control option

Manual via hand crank control; Motorized via remote control.

Any motorized mode can plus solar Wind Sun and Rain sensor.

full cassette awning-4


Plug option

For motorized awning, we can replace the awning plug as your local plug type if you need, easy for your using. Offering National standard plugs, American standard plug, British standard plug, Europlug.

(Other type plug also can be customized in our here)



Fabric option

1. 280gsm polyester fabric, comes with waterproof coating & UV resist; color fastness 4-5 grade

2. 300gsm 100% solution dyed acrylic fabric, excellent anti-UV performance; color fastness 7-8 grade

3. More than 50 colors for choosing, click to pick your favorite colors FABRIC SWATCHES


Details Photo Display

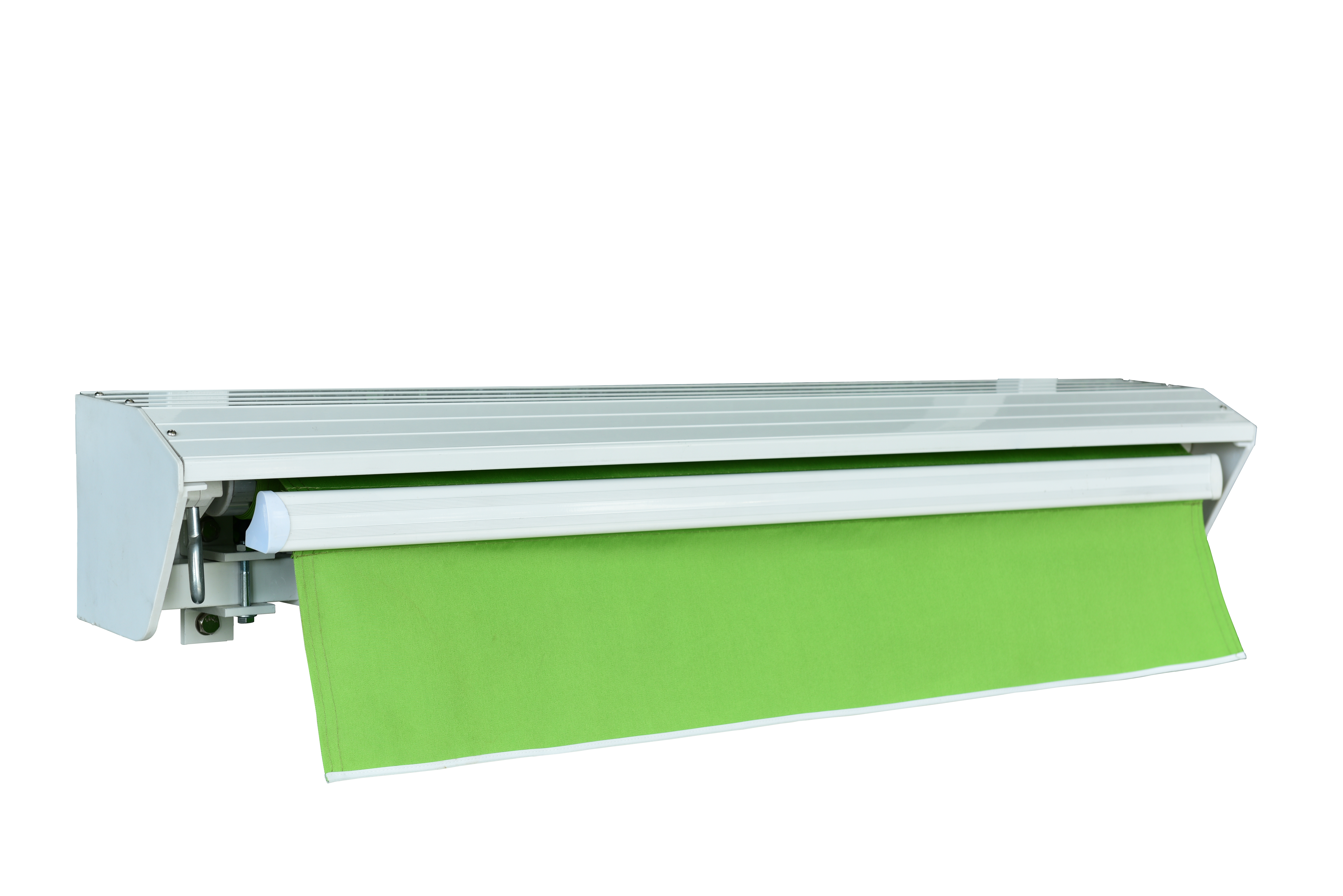

retractable awning 7retractable awning 6

Packages

We use carton box with angle packages for FCL awnings; woode case packages for LCL awnings.

carton box packages for awningwooden case packages for awning
